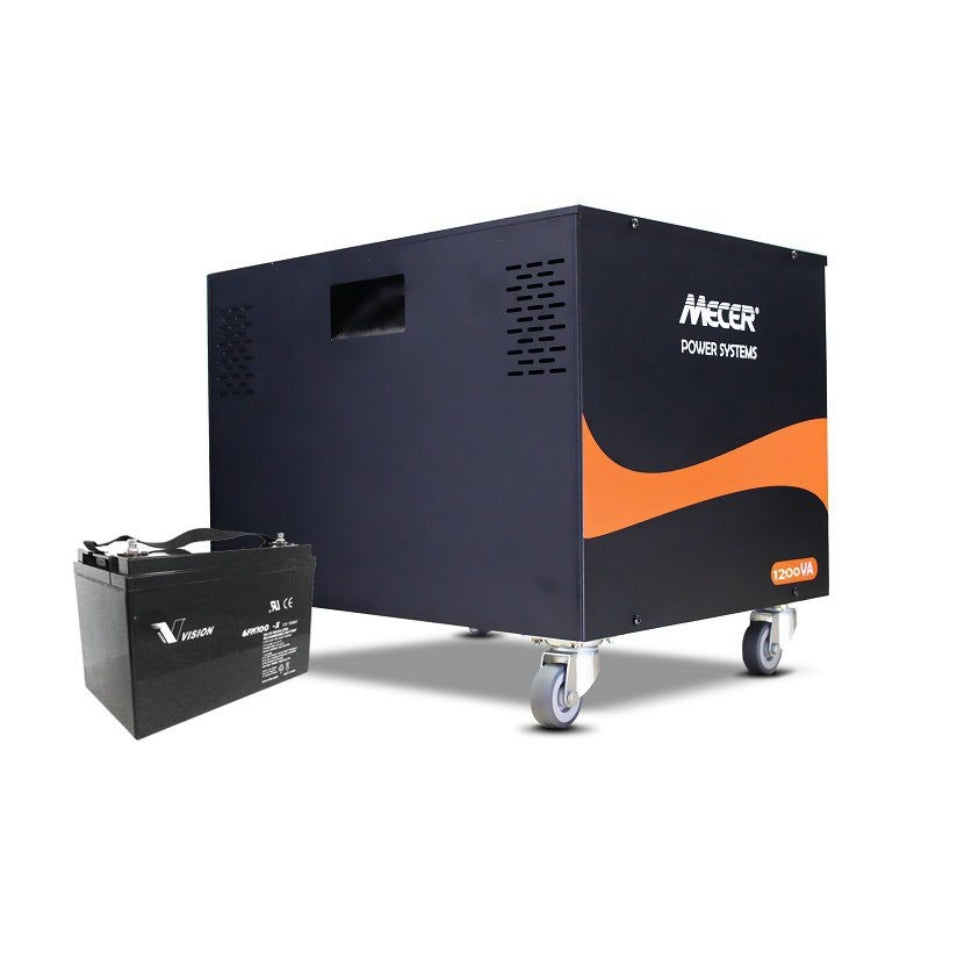

12V Inverter + 200AH Battery

Features
Supports 1x 12 V 100Ah battery (Included)
Transportable
1200VA/720W
DC-AC Inverter
Socket for Solar Power
Simulated sine wave inverter
Wide input voltage range
10 A standard AC charging current
LCD display for comprehensive information
Overload, short circuit and reverse polarity protection

Input

Voltage
230 VAC

Acceptable Voltage Range
90-280 VAC

Frequency
50 Hz/60 Hz (Auto sensing)
OUTPUT

AC Voltage Regulation (Batt. Mode)
± 10%

Efficiency (Peak)
82%

Transfer Time
20 ms typical

Waveform (Batt. Mode)
Simulated sine wave

BATTERY

Battery Type and Numbers
12 V 100Ah x 1

The rechargeable batteries are lead-lead dioxide systems. The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special oneway valves allow the gases to escape thus avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak proof and usable in any position.

PROTECTION
Full Protection
Overload, short circuit and polarity reserve protection

PHYSICAL

Dimension
370mm (W)x310(D) x400(H)

OPERATING ENVIRONMENT

Humidity
0 to 90% Relative Humidity (Non-condensing)

Operating Temperature
0? to 40?

Storage Temperature
-15? to 50?
