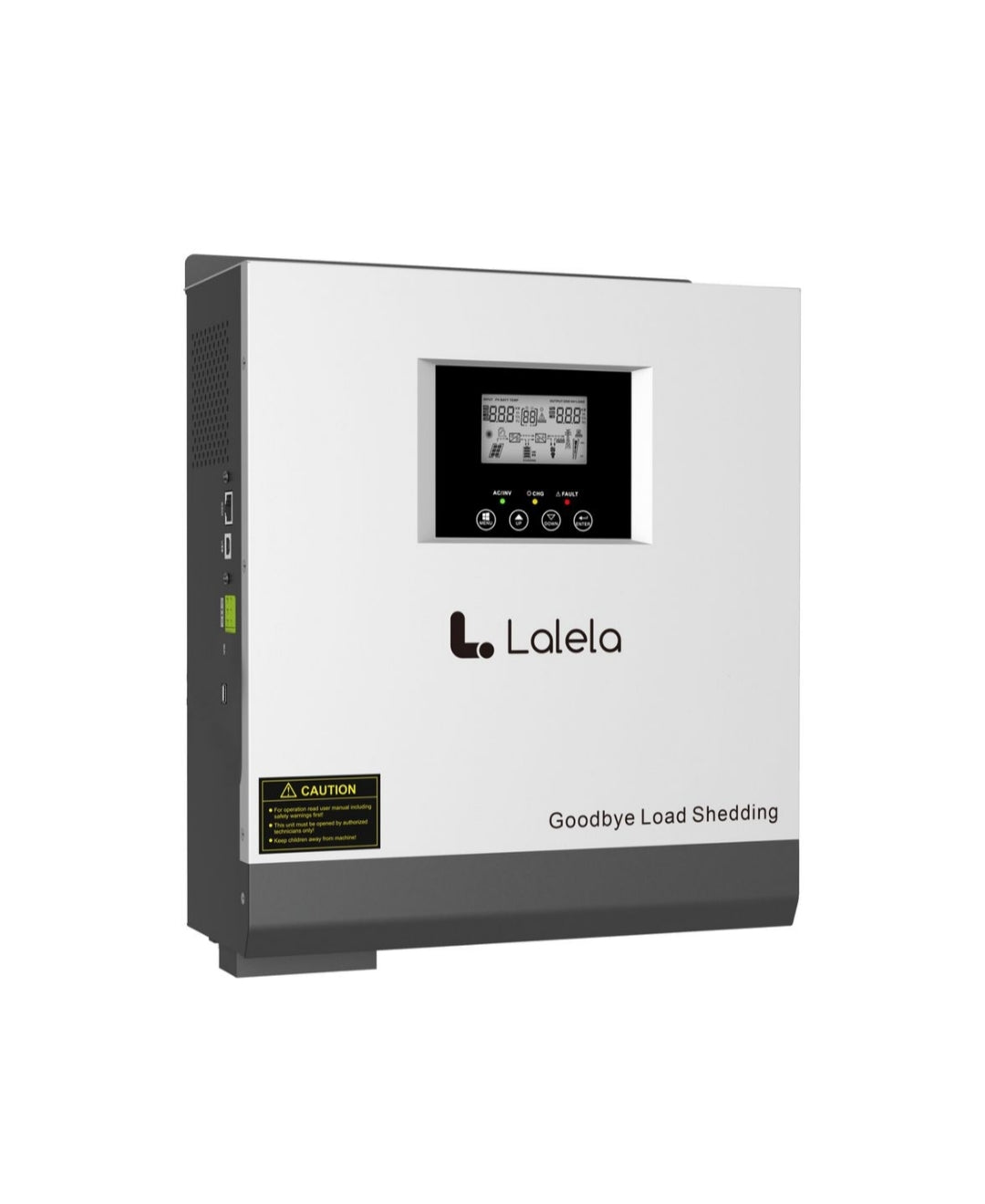

3kVA Hybrid Inverter

PRODUCT DESCRIPTION
• Pure sine wave inverter
• Built-in PWM solar charge controller
• Selectable input voltage range for home appliances and personal computers
• Selectable charging current based on applications
• Configurable AC/Solar input priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function

SPECIFICATIONS
• Rated Power 3000VA/3000W
• Input Voltage 230 VAC
• Frequency Range 50 Hz/60 Hz (Auto sensing)

OUTPUT
• AC Voltage Regulation (Batt. Mode) 230VAC ± 5 %
• Surge Power 600OW
• Efficiency (Peak) 93 %
• Transfer Time 10 ms (For Personal Computers), 20 ms (For Home Appliances)
• Waveform : Pure sine wave

BATTERY & AC CHARGER
• Battery Voltage 24 VDC
• Floating Charge Voltage 27 VDC
• Overcharge Protection 30 VDC
• Maximum Charge Current 20 A or 30 A

SOLAR CHARGER
• Maximum PV Array Open Circuit Voltage 80 VDC
• Maximum Charging Current 60A
• Maximum Efficiency 98%
• Standby Power Consumption 2 W
