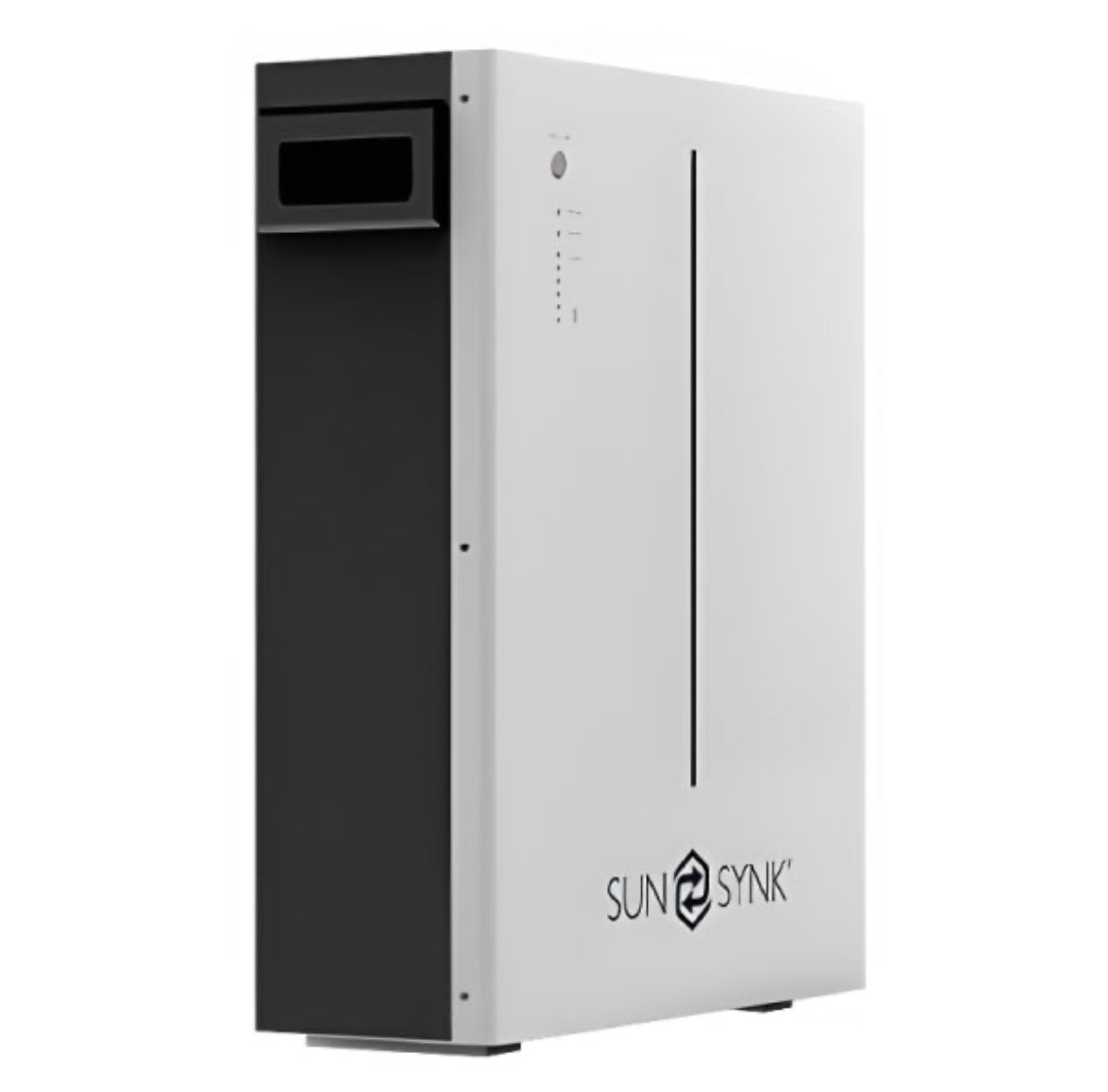

Sunsynk Battery 5.32kWh

This battery module consists of Lithium Ion phosphate rechargeable batteries with 5.32kWh capacity rated at 51.2V 104Ah with a built-in battery management system.

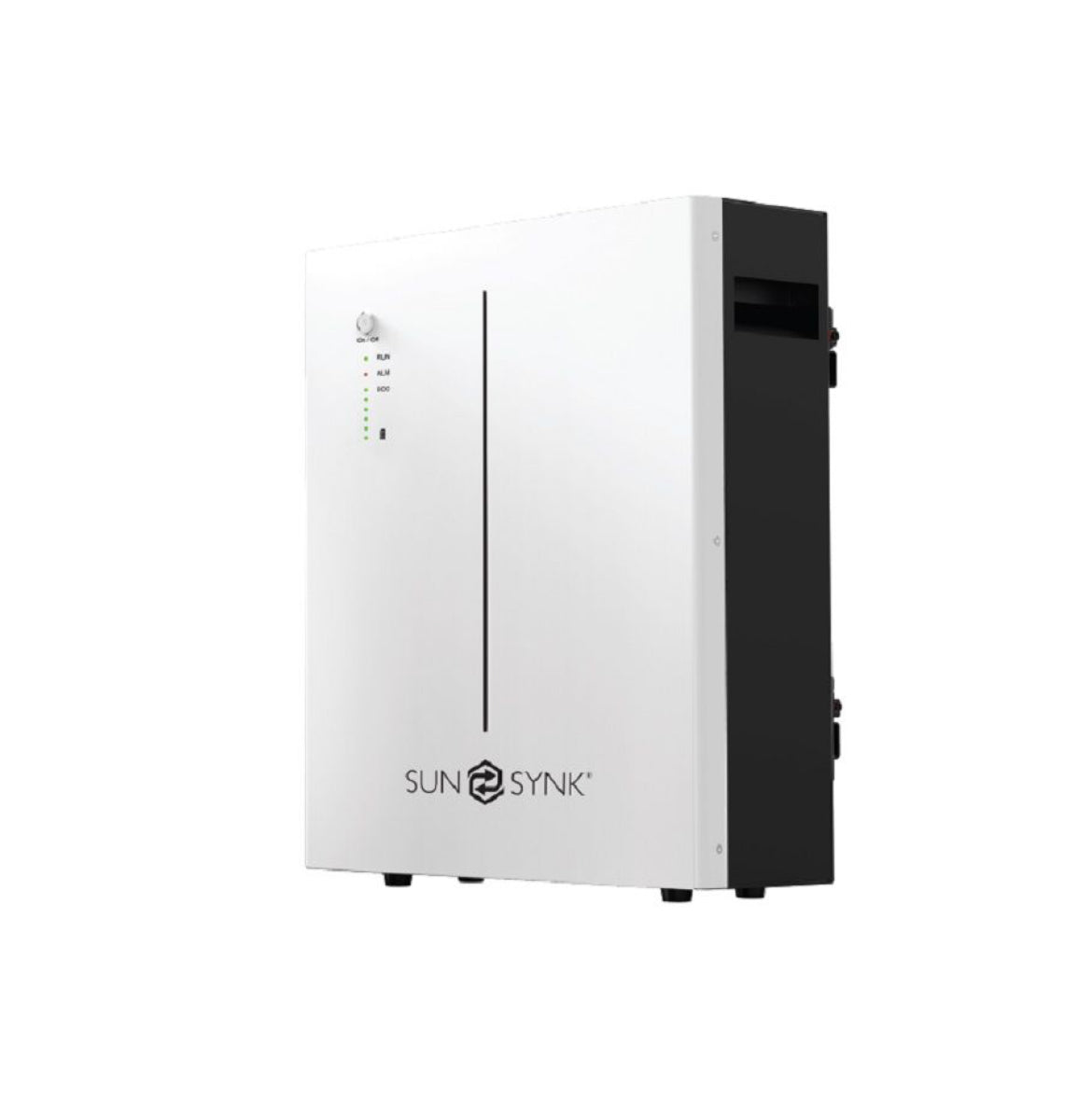

Sunsynk 5.1kwh Lithium-ion battery

Sunsynk has produced a perfect storage solution. The module consists of Lithium Ferro phosphate rechargeable batteries with 5.12kWh capacity rated at 51.2V 100Ah with a built-in battery management system. The battery can be expected to remain serviceable for more than 10 years and this takes into consideration that it is charged and discharged once per day at room temperature (25 C).
Lithium Ferro phosphate batteries provide excellent thermal stability and storage. The module also incorporates a self-monitoring function for the detection of any abnormalities in power storage.

Cell Type - Lithium Ferro Phosphate (LifePO4 or LFP)
Nominal Operating Voltage - 51.2V
Nominal Capacity - 100Ah / 5.12kWh
Depth of Discharge (DoD) - 100%
Usable Capacity - 5.12kWh
Packing - 1P16S
IP Rating - IP40
Minimum Operating Voltage - 44.8V
Maximum Operating Voltage - 57.6V
Standard Charging Current - 50A
Continuous Charging Current - 50A
Standard Discharging Current - 50A
Continuous Discharging Current - 100A (1C, 25 C 2 C)
Pulse Discharging Current - 200A (2C, 30S, 25 C 2 C SOC 40%)
Standard Charging Method - 0.5C CC to 57.6V, CV at 57.6V till current is 0.05C

Sunsynk have produced a perfect storage solution. The module consists of Lithium Ion phosphate rechargeable batteries with 5.32kWh capacity rated at 51.2V 104Ah with a built-in battery management system.

The battery can be expected to remain serviceable for more than 10 years and this takes into consideration that it is charged and discharged once per day at room temperature (25 C).
Lithium Ion Phosphate batteries provide excellent thermal stability and storage. The module also incorporates a self-monitoring function for the detection of any abnormalities in power storage.
